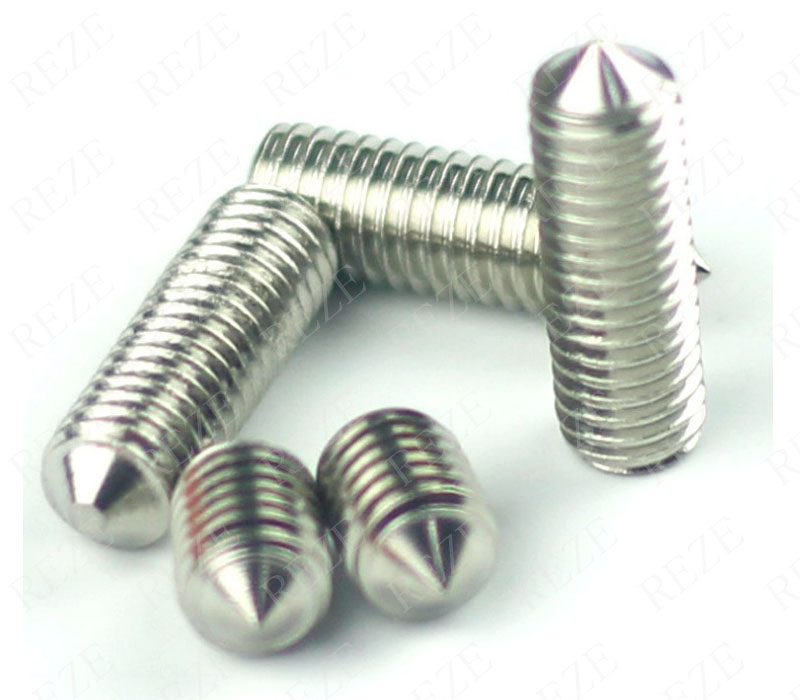

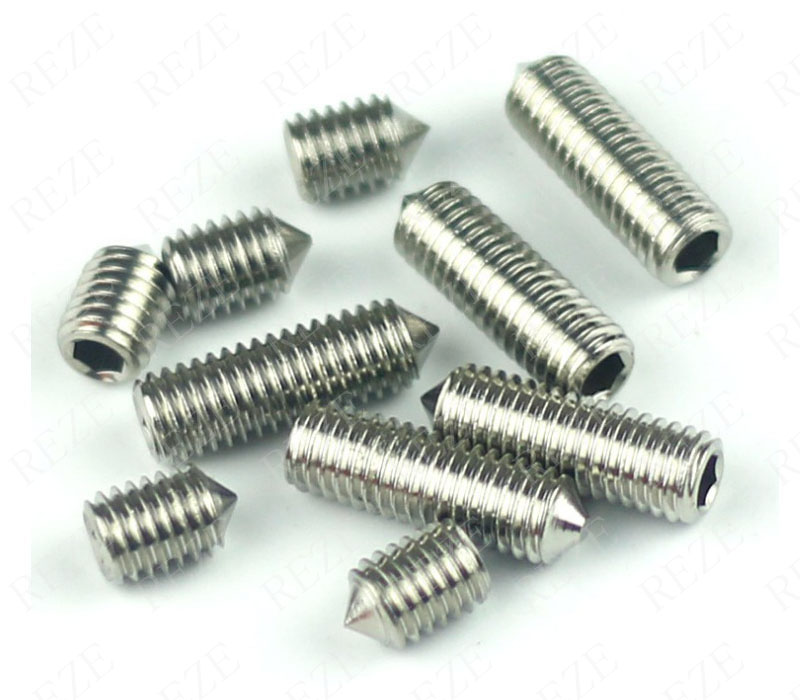

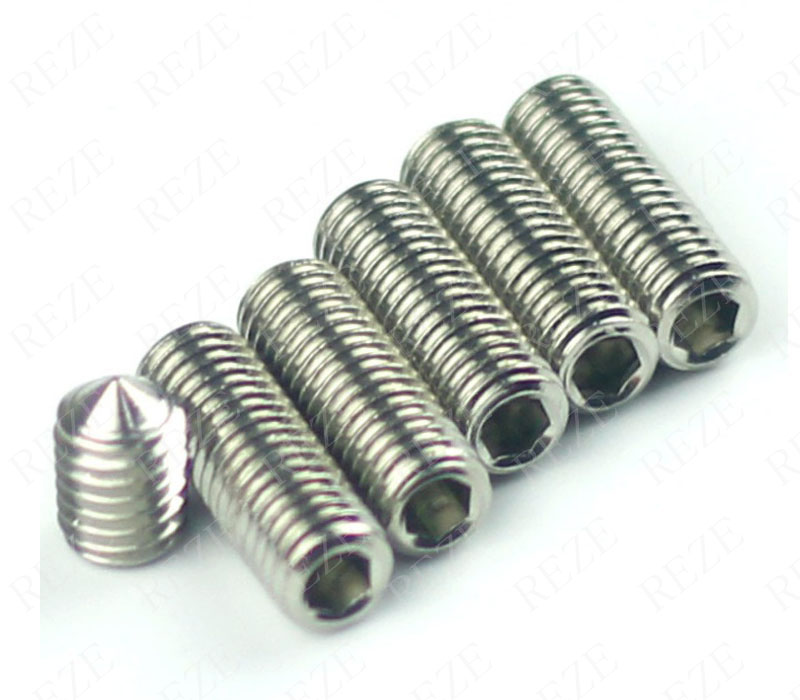

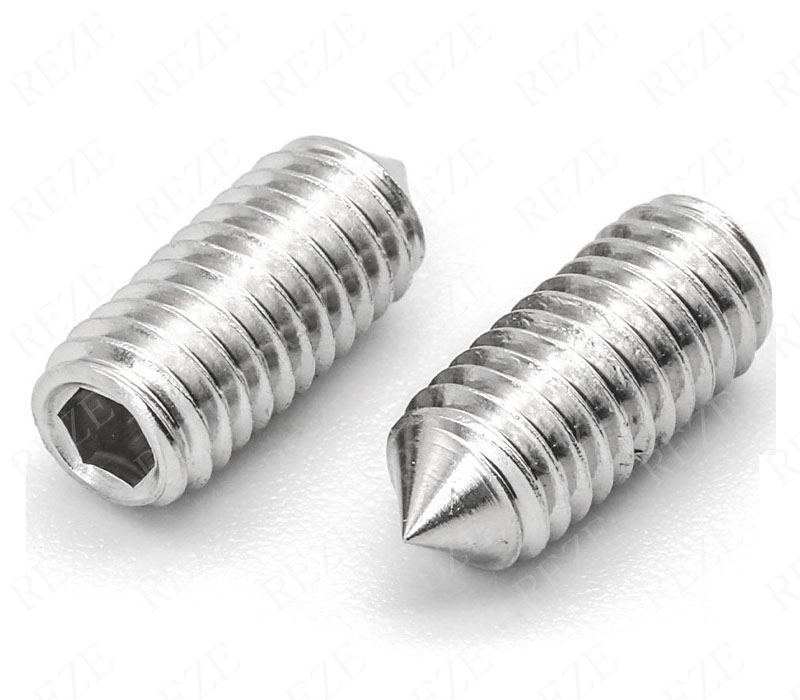

DIN914 Hexagon Socket Set Screws with Cone Point
Current norm: DIN EN ISO 4027
Equivalent norms: ISO 4027; CSN 021191; PN 82315; UNI 5927; EU 24027.
Steel: 45H
Stainless: A2, A4
Thread: 6g
DIN 914, Cone Point Hex Socket Set Screws, made of steel (8.8, 12.9, 45H) or stainless (A2-70 / A4-80)

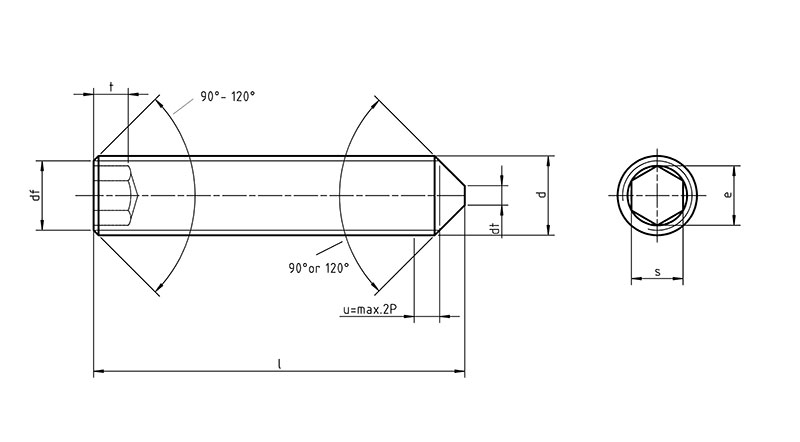

Dimension of DIN 914 as below:
Size | M3 | M4 | M5 | M6 | M8 | M10 | M12 |
df max. | — | — | — | 1.5 | 2 | 2.5 | 3 |
t min. | 1.2 | 1.5 | 2 | 2 | 3 | 4 | 4.5 |
e | 1.73 | 2.3 | 2.87 | 3.44 | 4.58 | 5.72 | 6.86 |
s | 1.5 | 2 | 2.5 | 3 | 4 | 5 | 6 |
Proof Torque min. (NM) | 0.9 | 2.5 | 5 | 8.5 | 20 | 40 | 65 |
