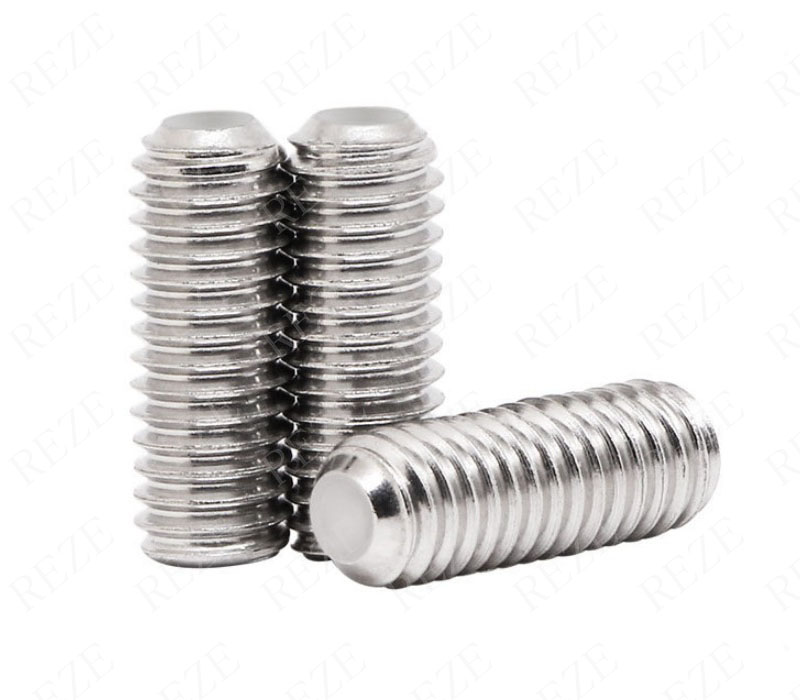

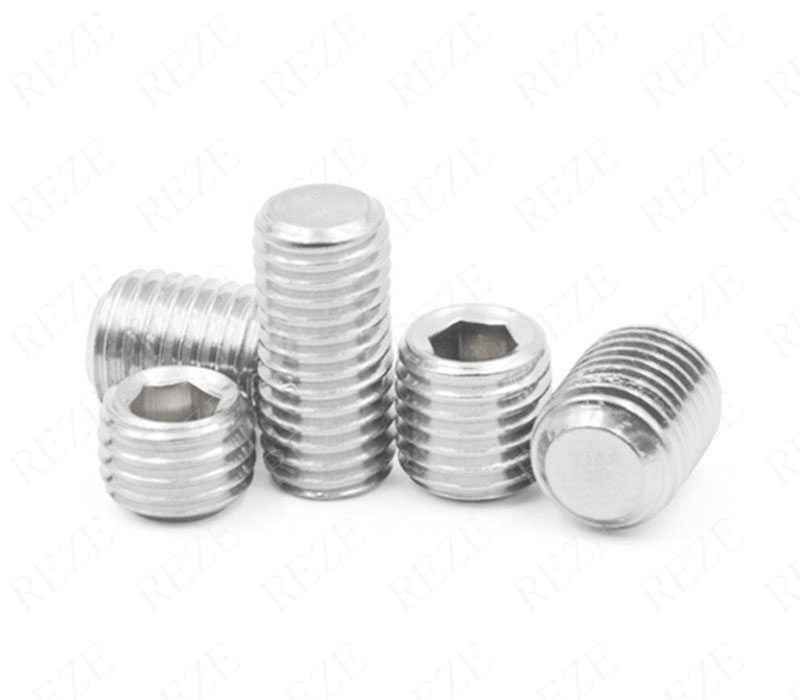

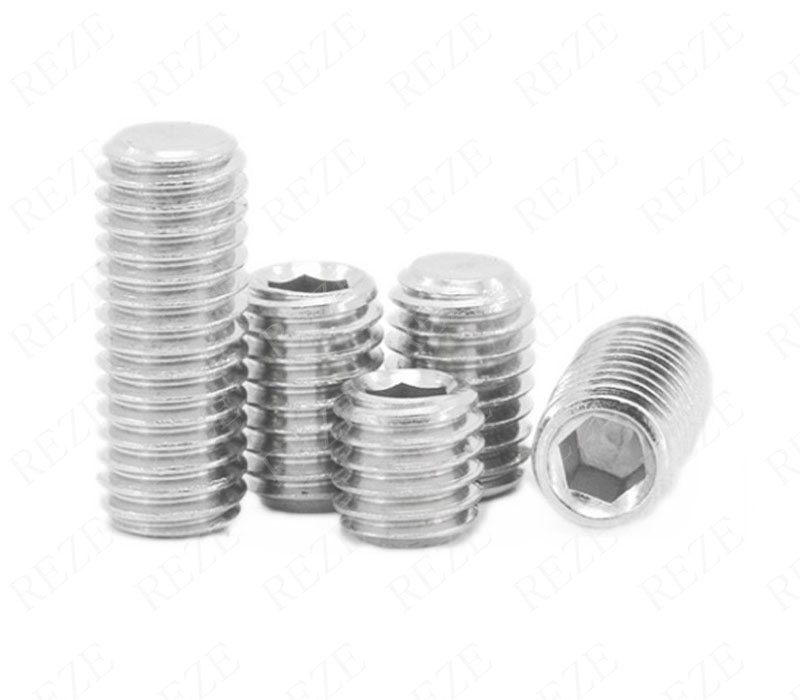

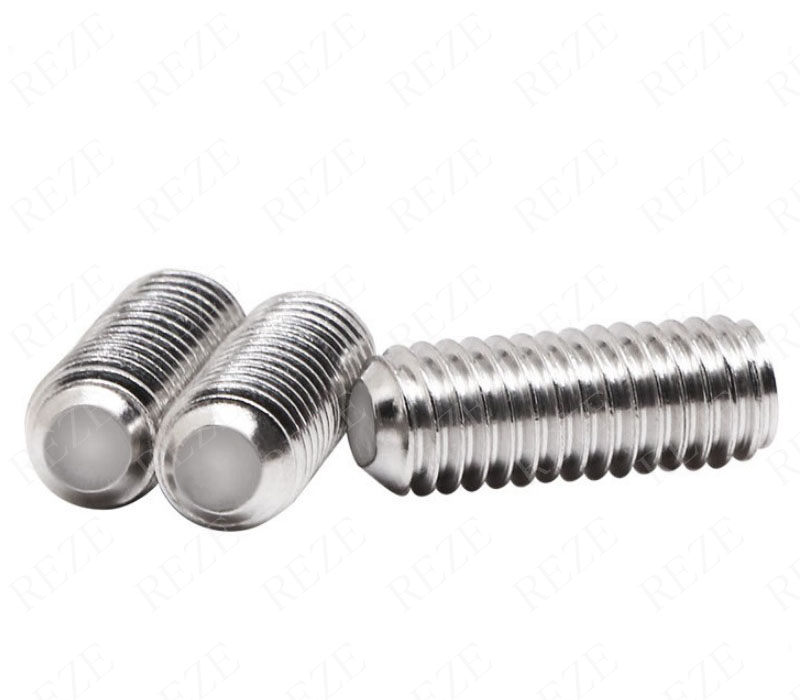

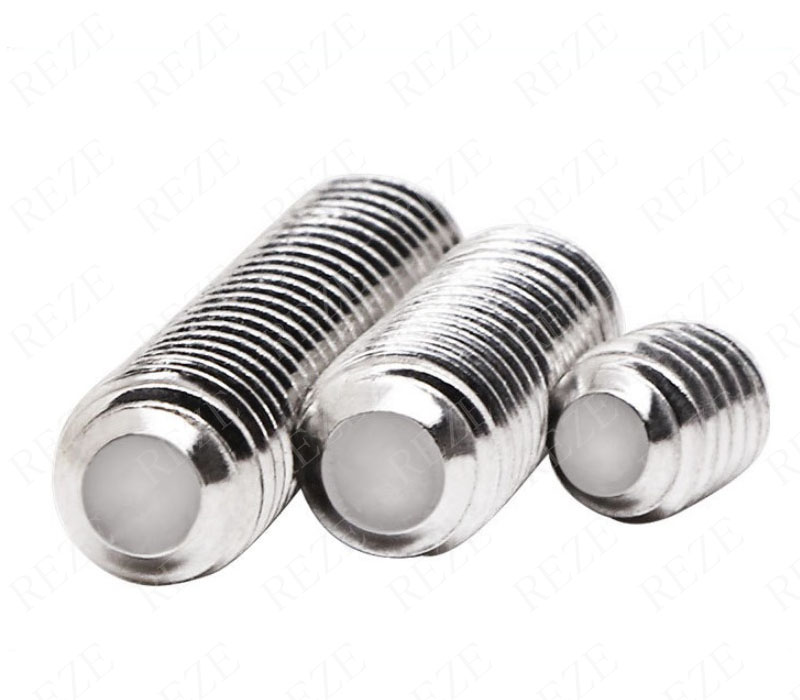

Hexagon Socket Set Screws With Flat Point DIN913
Size: M5, Length: 12mm 50pcs
Drive style: Hex Socket
Model number: DIN913
Thread Forms:
ISO Metric, American National screw threads (NC, NF, NS, NPT), American Unified thread Forms (UNC, UNF), British Standard Whitworth thread forms (BSW, BSF) or any Special Threads.
DIN 913 – Hex Socket Set Screws with flat point.

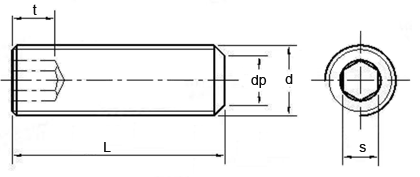

Dimension of DIN 913 as below:
| Size | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M16 | M20 |
| t min. | 1.2 | 1.5 | 2 | 2 | 3 | 4 | 4.8 | 6.4 | 8 |
| e | 1.73 | 2.3 | 2.87 | 3.44 | 4.58 | 5.72 | 6.86 | 9.15 | 11.43 |
| s | 1.5 | 2 | 2.5 | 3 | 4 | 5 | 6 | 8 | 10 |
DIN 913 Socket Set Screws Specially designed for use with a square or hex key. It is also installed or removed by a screwdriver. DIN 913 is available in the full-length and full thread. DIN 913 Socket Set Screws come with a flat point at one end and an internal hexagonal drive at the other end. We supply different types of DIN 913 Socket Set Screws that are made of different materials, sizes, threads, drive styles, finishes and other configurations. DIN 913 Socket Set Screws are available with various plating, finishing or coating options such as Tin, Zinc (yellow, white, blue, black), Hot Dip-Galvanized, Chrome, Nickel-Brass, Black Oxide, Electro Tin, Phosphate, Powder Coating and any other as required. We also manufacture Customized Socket Set Screws that perfectly match customer design and specifications.
Characteristics:
- Headless and full threaded.
- Internal hexagonal drive.
- Use with pre-drilled hole.
- Equivalent standard: DIN 913, ISO 4026, PN 82314, UNI 5923, CSN 21187.
- Corrosion and Abrasion Resistant.
- Available in both metric and inch.
- Heat resistant and slightly magnetic.
- Also known as Socket Head Grub Screw.
- Strong and highly Durable.
- DIN 913 Provide highest holding capacity.
- Resist to loosing.
Industrial Purpose and Use:
- DIN 913 Socket Set Screws used to relocate or reset hard shafts.
- It is mostly used in many Industrial and Mechanical Devices.
- Widely use with rotating elements such as pulley or wheel.
- DIN 913 Used where component is locked onto a shaft.
